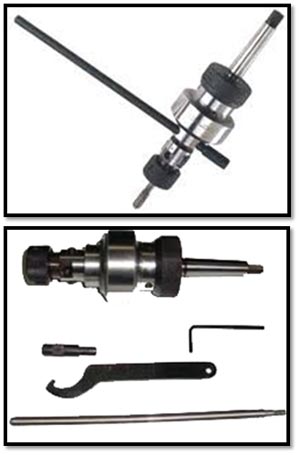

Auto Reversing Tapping Attachment
Salient Features
- Are suitable for use with standard taps on any drilling machine or lathe, vertically or horizontally for right or left hand tapping of blind or thru holes.
- Have adjustable friction-clutch to avoid tap breakage.
- Have self-centring chuck to hold tap true.
- Are extremely useful for mass production.
- Have perfect automatic reversing mechanism with double pull out speed.
- Are made of alloy steel with all moving parts hardened and ground to precision.
- Have all parts interchangeable and easily replaceable.
Batch quantities or Lot production of tapping by this attachment could be achieved accurately on existing machine tool, like a drill, without requiring any modifications. Having versatile application in every machine shop they dispense with laborious hand tapping and threading and use of expensive machines.
|
Auto Reversing Tapping Attachment |
Capacity |
Shank Morse Taper |
M2-M4
1/16"-3/16" |
1 |
M3-M10
1/8"-3/8" |
1 OR 2 |
M6-M16
1/4"-5/8" |
2 OR 3 |
M8-M18
5/6"-3/4" |
3 |
M10-M24
3/8"-1" |
3 OR 4 |
M14/M30
9/156"-1(1/2)" |
4 |
|
Note : Taps do not form part of Tapping Attachment Supply. |
|
